Yamaha YS12F Pick and Place Machine, 20,000CPH, Original and Used SMT Machines

The YAMAHA Pick and Place Machine YS12F is newly developed based on the three "Ones" concepts and provides 1) a combination of a mounting speed that is number one in its class, 2) a one-head-solution that does not require replacement, and 3) integration of three models of the YS12 type into one platform.

Simultaneously, the specifications of all three current models of the YAMAHA Pick and Place Machine YS12 series have been integrated into one platform featuring the flexibility and mobility of the compact high-speed modular YS12; the partly simplified version of the compact economy-modular YS12P, and the highly-versatile compact modular YS12F.

In addition, pickup and recognition errors are suppressed along with reduced loss in machine stoppage due to the integration of the common functionalities of the two high-level machines.

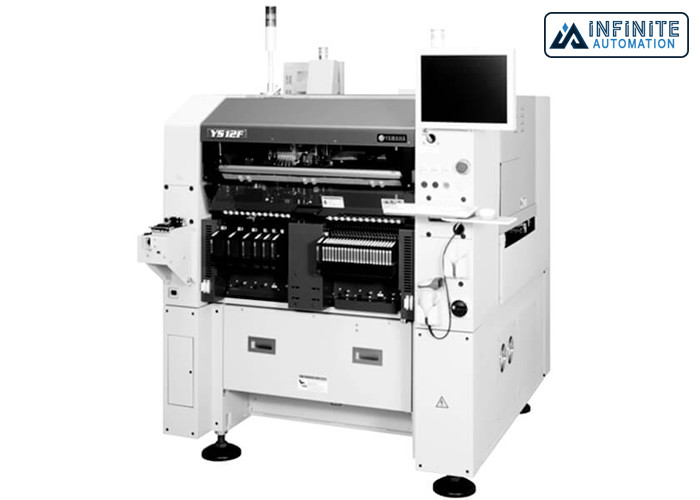

Yamaha YS12F Pick and Place Machine

• Applicable PCB: L510mm x W460mm to L50mm x W50mm
• Mounting accuracy: Absolute accuracy +/-0.05mm/CHIP
• Mounting tact: 20,000CPH under our optimum condition
• Component supply: Tape reel, tray
• Number of component types: Tape package components: 106 types Max/8mm tape reel conversion tray
• Package conversion: 15 types Max/JEDEC tray conversion
• Applicable components: 0402 to 45x100mm, including ball type electrode components *32x32mm or more needs special nozzle set
• Applicable height: 15mm
• Power supply: 3-Phase AC 200/208/220/240/380/400/416 V +/-10%
• Air supply source: 0.45MPa
• External dimension: L1, 254 x W1, 755 x H1, 475mm when ATS15 mounted; not include the projection
• Weight approx. 1,370kg when ATS15 mounted
