FUJI AIMEX III SMT Line Machine Flexible Placement Platforms

FUJI AIMEX III Pick and Place Machine, AIMEX III Flexible Placement Platforms, Original and Used SMT Machines

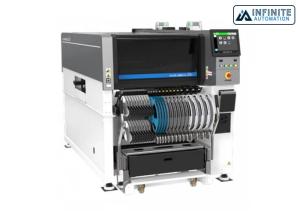

The FUJI AIMEX III is designed for component flexibility, PCB flexibility, and production flexibility. Applicable for production of large panels or simultaneous production of two models. The AIMEX III can support large panels up to 774 (L) x 710 (W) mm in size. Simultaneous production of two different products is possible using our dual conveyor configuration machine. The AIMEX III also enables various production methods and supports a wide range of panel sizes. The DX head exchanges the dedicated tool in one action depending on the part size, from small chips to large odd-form parts. Also, using wide-range nozzles together provides further efficient placement. The AIMEX III offers dynamic exchange during production to the best tool for the job. Borderless production is made possible using the DynaHead to dynamically exchange between 12-nozzle, 4-nozzle, and single nozzle tools.

Features:

Production for Large Panels or Simultaneous Production of Two Models

  • The AIMEX III can support large panels up to 774 (L) x 710 (W) mm in size.
  • Simultaneous production of two different products is possible using our dual conveyor configuration machine. The AIMEX III also enables various production methods and supports a wide range of panel sizes.

Supporting 0402 (01005") to 74 x 74 mm with one head

  • Our DX head exchanges the dedicated tool in one action depending on the part size, from small chips to large odd-form parts. Also, using wide-range nozzles together provides further efficient placement.

DynaHead Dynamic Exchange

  • The AIMEX III offers dynamic exchange during production to the best tool for the job. Borderless production is made possible using the DynaHead to dynamically exchange between 12-nozzle, 4-nozzle, and single nozzle tools.

Minimizing the changeover count

  • Changeover time can be reduced by performing MFU batch changeover and by the machine having up to 130 slots for feeders which makes it possible to load all of the required parts.

Ramping up production smoothly

  • Automatic data creation and on-machine editing using a large touchscreen panel work to support ramping up new production and quick response to sudden changes to programs.

Specifications:

Basic Specifications
PCB size(LXW) 48 x 48 mm to 774 x 610 mm (double conveyor)*
48 x 48 mm to 774 x 710 mm (single conveyor)
*Double conveyors can handle PCBs up to 330 (W) mm. PCBs larger than 330 (W) mm must be produced by changing the double conveyor to single lane production mode.
Feeder capacity Up to 130 (8 mm tape)
PCB load time 2.9 sec
Placing accuracy H24G: +/-0.025 mm (Standard mode) / +/-0.038 mm (Productivity priority mode, under development) (3sigma) cpk≥1.00
(Fiducial mark based referencing) H08M: +/-0.040 mm (3σ) cpk≥1.00
OF: +/-0.050 mm (3σ) cpk≥1.00
H02F: +/-0.025 mm (3σ) cpk≥1.00
H01: +/-0.030 mm (3σ) cpk≥1.00
Machine dimensions L: 1280mm, W: 2656mm, H: 1556mm

Placing heads
H24G H08M H02F H01 OF
Nozzle quantity 24 8 2 1 1
(or 1 claw)
Throughput(cph) 37,000 cph (Productivity priority mode, under development) 13,000 7,300 4,200 3,000
35,000 cph (Standard mode)
Part size 03015 mm to 5 x 5 0603 (0201") 1608 (0603") 1608 (0603")
(mm) Height: to 45 x 45 to 74 x 74 (32 x 180) to 74 x 74 (32 x 180)
Up to 2.0 mm Height: Height: Height:
Up to 13.0 mm Up to 25.4 mm Up to 38.1 mm
Part presence x
check (H08MQ)
Parts Tape
supply Stick x
Tray x

DynaHead(DX)
Nozzle quantity 12 4 1
Throughput(cph) 27,000 12,000 5,800
Parts presence function ON: 26,000
Part size 0402 (01005") to 12.5 mm diagonally and Y is 7.5 mm or less 1608 (0603") 1608 (0603")
(mm) Height: to 15 x 15 to 74 x 74 (32 x 100)
Up to 3.0 mm Height: Height:
Up to 6.5 mm Up to 25.4 mm
Placing accuracy +/-0.038 (+/-0.050) mm (3σ) cpk≥1.00 +/-0.040 mm (3σ) cpk≥1.00 +/-0.030 mm (3σ) cpk≥1.00
(Fiducial mark based referencing)
Part presence o x o
check
Parts Tape o o o
supply Stick x o o
Tray x o o
