25000CPH Yamaha YS100 SMT Placement Machine Original And Used

Yamaha YS100 Pick and Place Machine 25,000CPH Original And Used

Yamaha YS100 Pick and Place machine is designed with a high precision single placement beam that carries eight independent Z-servo controlled heads. The YS100 SMT Mounter provides a perfect balance between the chip and IC shooting. Yamaha YS100 is available in two (2) versions, one with a Flying Nozzle Change (FNC) head for when many nozzle changes are needed and high output is important, and the other with a Super Fine (SF) head for use with a wider component range including QFPs, connectors and tall components.

With placement rates of up to 19.6k components per hour, the YS100 is fast. Placement accuracy is 30 microns for ICs. It handles a wide range of components from 0.4x0.2 mm (01005) to large connectors (100x45 mm), fine-pitch, and components up to 15 mm tall. The YS100 holds up to 126 tape feeding positions.

Features:

• The standard YS100 comes with software and hardware features to improve product quality, increase production efficiency, shorten NPI and changeover times, and reduces maintenance, including:
• Intelligent electrical feeders
• Z-Servo controlled placement heads for accurate stress-free component mounting
• Automatic board width and thickness adjustment for fast changeover
• Automatic nozzle cleaning station
• Automatic temperature feedback to compensate for temperature variations
• Fiducial recovery function that eliminates the need to remove and clean the PCB
• Feeder indicators that facilitate easy setup and reduce feeder setup
• Double board support system for reducing board transfer time
• Tape cutters

High-speed mounting capacity handling

• 25,000CPH(0.14sec/CHIP Equivalent : optimum condition)
• +/-50μm(CHIP),
• +/-30μm(QFP)mounting
• absolute accuracy in full time operation
• Handles a wide range of components from 0402 chips to W45xL100mm or fewer components and with long connectors
• Capable of handling 15mm height components
• Applicable to large size PCB(L510mm x W460mm)
• Built-in tape cutter available as an option
• Conformity with both Machinery directive and EMC directive

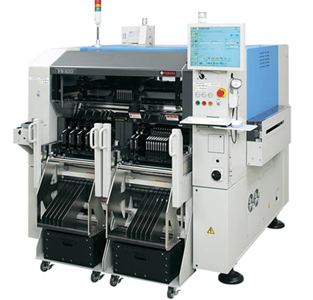

Yamaha YS100 SMT Placement Machine

25000CPH SMT Placement Machine

Yamaha YS100 SMT Placement Equipment

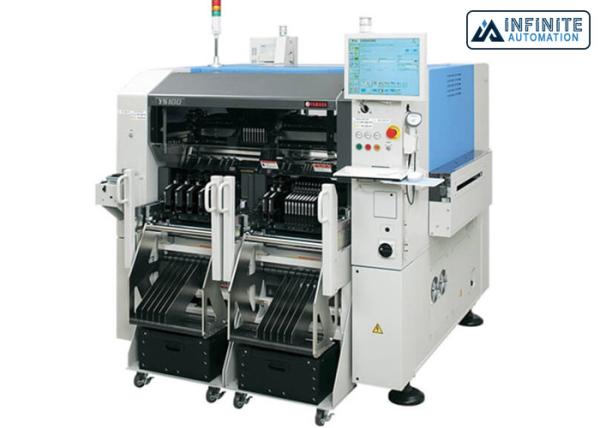

25000CPH Yamaha YS100 SMT Placement Machine Original And Used Images
